DSG Gearbox,Hybrid & Electric VehicleSpecialists

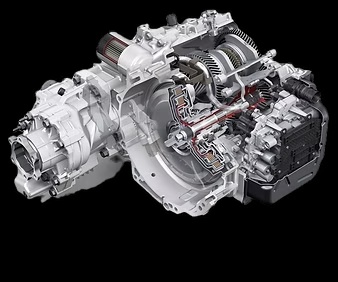

High-torque transverse VAG applications, including selected Golf R, S3, Transporter and performance models.

• P1735 / P1736Clutch position sensor fault

  An electrical or internal mechatronic sensor fault can trigger limp mode, loss of gears or a gearbox warning.

• P0607Control module performance

  The gearbox controller has detected an internal performance or supply-voltage problem and requires proper electrical diagnosis.

• P2716Pressure-control solenoid fault

  Poor hydraulic pressure regulation can cause harsh changes, delayed engagement or no drive.

• SHIFT QUALITYJudder, slipping or harsh shifts

  Often linked to clutch wear, adaptation values outside limits, oil condition or hydraulic-control problems.

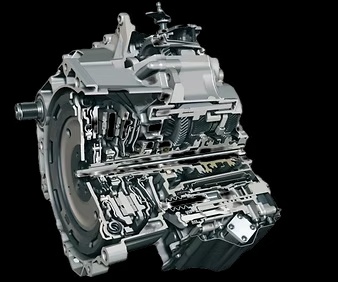

The 0CW is the later MQB development of the seven-speed dry-clutch DQ200.

• P189CHydraulic pressure too low

  The pump, pressure accumulator or mechatronic hydraulic circuit may be unable to build or retain enough pressure.

• P0841Pressure sensor implausible

  An incorrect hydraulic-pressure signal can cause emergency running, flashing PRNDS or loss of drive.

• P176F / P174DClutch regulation fault

  The controller cannot regulate a clutch or actuator as expected, commonly causing poor engagement or missing gears.

• TAKE-OFFJudder when pulling away

  Dry-clutch wear, contamination or adaptation outside limits can produce shuddering and hesitant engagement.

Longitudinal seven-speed S tronic used across selected Audi A4, A5, A6, A7, Q5 and performance models.

• P17D8Clutch temperature torque limitation

  The transmission limits torque because clutch temperature is excessive, often accompanied by a gearbox warning.

• P179CMain pressure valve electrical fault

  An internal electrical or circuit-board fault can interrupt main hydraulic-pressure control.

• P174ASub-gearbox valve electrical fault

  A mechatronic valve or its internal circuit can fail, causing missing gears, emergency mode or harsh operation.

• P179EDrive position sensor electrical fault

  The gearbox may lose reliable selector-position information and display a malfunction warning.

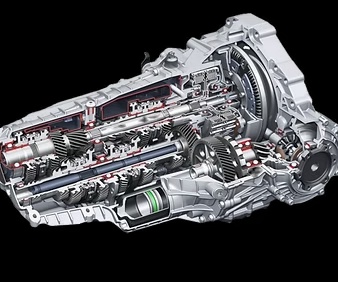

DL382-family seven-speed S tronic gearboxes used in longitudinal Audi applications, with variants for different drivetrains and torque outputs.

• P0718Input speed signal intermittent

  An unreliable transmission input-speed signal can cause incorrect shifting, limp mode or a gearbox warning.

• P0811Excessive clutch slippage

  Clutch wear, heat or adaptation problems can allow excessive slip during take-up or gear changes.

• P179FDrive position sensor malfunction

  The gearbox cannot reliably determine an internal drive position, which can prevent gear selection.

• SHIFT QUALITYHarsh take-up or gear changes

  Clutch adaptation, hydraulic regulation or mechatronic wear should be checked before parts are replaced.

Selected VAG plug-in hybrid applications including A3, Q3, Golf, Passat, Tiguan, Leon, Tarraco, Octavia, Superb and Kodiaq models.

• P2884Engine disconnect clutch stuck

  The K0 engine-disconnect clutch remains open or closed. The vehicle may stay in electric drive, enter emergency mode or fail to bring in the combustion engine.

• P0867Transmission pressure too low

  A pressure drop in the hydraulic or mechatronic circuit can cause a gearbox warning, harsh engagement, limp mode or loss of drive.

• P0810Clutch position control error

  The controller cannot regulate the commanded clutch position correctly, often causing poor take-up, judder or a hybrid-system warning.

• P07A3 / P07A5K1 or K2 clutch stuck closed

  A clutch or hydraulic-control fault prevents the affected clutch from releasing correctly and can leave gears unavailable or the gearbox in emergency mode.
